Diodes, bridges

Results: 448

Filter layout: |
Filters
MPN Article Brand In stock Price Discounts Quantity Description Weight g. Mounting type Type of shell Urev. max, V Ipr. max. Ipr. imp. max. Diode type Power Factory packaging Diode design
Diode bridge KTS405A
Diode bridge KTS405A
#13933
 26112 СНГ 14 шт
8 грн.
Diode bridge 1A 600V 5.2 DIP — 600V 1A — Diode bridge — 500pcs —
Diode D101 flat terminals
Diode D101 flat terminals
#15803
 28040 СНГ 14 шт
3 грн.
50+2,70 грн.
200+2,40 грн.
500+2,10 грн.
Diodes D101 silicon, point, universal. Designed to work in TV video channels, in AGC systems and discriminators of FM and AM receivers. 0.9 DIP — 75V 30mA — Rectifier — 500pcs single
Diode D247
Diode D247
#16189
 28434 СНГ 14 шт
40 грн.
50+36 грн.
200+32 грн.
500+28 грн.
The main technical characteristics of the diode D247: • Uopp max - Maximum direct reverse voltage: 500 V; • Inp max - Maximum forward current: 10 A; • fd - Operating frequency of the diode: 1.1 kHz; • Unp - DC forward voltage: no more than 1.25 V at Inp 10 A; • Iobr - Constant reverse current: no more than 3000 µA at Uobr 500 V. 13 Screw КДЮ-11 500V 10A — Rectifier — 50pcs single
Diode D215A
Diode D215A
#17038
 29288 СНГ 14 шт
35 грн.
50+31,50 грн.
200+28 грн.
500+24,50 грн.
Main technical characteristics of the D215A diode: • Uobp max - Maximum constant reverse voltage: 200 V; • Inp max - Maximum forward current: 10 A; • fd - Operating frequency of the diode: 1.1 kHz; • Unp - Constant forward voltage: no more than 1.0 V at Inp 10 A; • Iobr - Continuous reverse current: no more than 3000 µA at Uobr 200 V. 13 Screw КДЮ-11 200V 10A — Rectifier — 50pcs single
Diode HER108 MIC
Diode HER108 MIC
#1030
 22451 MIC 13 шт
1 грн.
100+0,90 грн.
200+0,80 грн.
500+0,70 грн.
0.3 DIP DO-41 1000V 1A — Fast — 1000pcs single
Diode P600B (6A, 100V)
Diode P600B (6A, 100V)
#16135
 28374 DIOTEC SEMICONDUCTOR 12 шт
6 грн.
100+5,40 грн.
200+4,80 грн.
500+4,20 грн.
100V 6A 1.8 DIP R-6 100V 6A — Rectifier — 1000pcs single
Diode 2D201G (=KD201G)
Diode 2D201G (=KD201G)
#12957
 25228 СНГ 11 шт
40 грн.
50+36 грн.
200+32 грн.
500+28 грн.
Diodes 2D201G silicon, diffusion. Designed to convert alternating voltage with a frequency of up to 1.1 kHz. 13 Screw КДЮ-11 200V 10A 15A Rectifier — 40pcs single
Diode P600G (6A, 400V)
Diode P600G (6A, 400V)
#16136
 28375 DIOTEC SEMICONDUCTOR 11 шт
8 грн.
100+7,20 грн.
200+6,40 грн.
500+5,60 грн.
400V 6A 1.8 DIP R-6 400V 6A — Rectifier — 1000pcs single
Diode KD203G
Diode KD203G
#16186
 28431 СНГ 11 шт
50 грн.
50+45 грн.
200+40 грн.
500+35 грн.
Diodes KD203G silicon, diffusion. Designed to convert alternating voltage with a frequency of up to 5 kHz. The main technical characteristics of the diode KD203G: • Uopp max - Maximum direct reverse voltage: 700 V; • Inp max - Maximum forward current: 10 A; • fd - Operating frequency of the diode: 1 kHz; • Unp - DC forward voltage: no more than 1 V at Inp 10 A; • Iobr - Constant reverse current: no more than 1500 μA at Uobr 1000 V. 13 Screw — 700V 10A — Rectifier — 25pcs single
Diode CMSH1-40M TR13 (=CS40M) smd
Diode CMSH1-40M TR13 (=CS40M) smd
#17137
 29387 Central Semiconductor Corp 9 шт
14 грн.
100+12,60 грн.
200+11,20 грн.
500+9,80 грн.
0.1 SMD DO-214AC, SMA 40V 1A — Schottky — 5000pcs single
Diode 2D201A (=KD201A)
Diode 2D201A (=KD201A)
#12955
 25226 СНГ 8 шт
25 грн.
50+22,50 грн.
200+20 грн.
500+17,50 грн.
Diodes 2D201A silicon, diffusion. Designed to convert alternating voltage with a frequency of up to 1.1 kHz. 13 Screw КДЮ-11 100V 5A 15A Rectifier — 40pcs single
Diode 2D230B (=KD230B)
Diode 2D230B (=KD230B)
#3406
 23309 СНГ 6 шт
10 грн.
50+9 грн.
200+8 грн.
500+7 грн.
90 г. 5.2 Screw КД-11 600V 3.0A — Rectifier — 100 pieces. single
Diode 2D204A (=KD204A)
Diode 2D204A (=KD204A)
#10728
 25434 СНГ 6 шт
15 грн.
50+13,50 грн.
200+12 грн.
500+10,50 грн.
Designed to convert alternating voltage with a frequency of up to 50 kHz. The main technical characteristics of the diode 2D204A: • Uobr and max - Maximum impulse reverse voltage: 400 V; • Inp max - Maximum forward current: 400 mA; • fd - Operating frequency of the diode: 1 kHz; • Unp - DC forward voltage: no more than 1.4 V at Inp 600 mA; • Iobr - DC reverse current: no more than 150 µA at Uobr 400 V; • tvoc - Reverse recovery time: 1.5 µs 5 Screw КД-11 400V 400mA — Rectifier — 50pcs single
Diode D242
Diode D242
#16190
 28435 СНГ 6 шт
30 грн.
50+27 грн.
200+24 грн.
500+21 грн.
The main technical characteristics of the diode D242: • Uopp max - Maximum direct reverse voltage: 100 V; • Inp max - Maximum forward current: 10 A; • fd - Operating frequency of the diode: 1.1 kHz; • Unp - DC forward voltage: no more than 1.25 V at Inp 10 A; • Iobr - Constant reverse current: no more than 3000 µA at Uobr 100 V. 13 Screw КДЮ-11 100V 10A — Rectifier — 50pcs single
Diode FMP-3FU (=FMP-G3F)
Diode FMP-3FU (=FMP-G3F)
#1023
 20974 SANKEN 5 шт
34 грн.
100+30,60 грн.
200+27,20 грн.
500+23,80 грн.
800V*10A*100W, two in series diode 6.5 DIP TO-3PF 1500V 10A — Damper 100Вт 30pcs 2 diodes in series
Diode D104
Diode D104
#8887
 28397 СНГ 5 шт
3 грн.
50+2,70 грн.
200+2,40 грн.
500+2,10 грн.
The main technical characteristics of the diode D104: • Uopp max - Maximum direct reverse voltage: 100 V; • Inp max - Maximum forward current: 30 mA; • fd - Operating frequency of the diode: 150 kHz; • Unp - DC forward voltage: no more than 2 V at Inp 2 mA; • Iobr - Constant reverse current: no more than 5 μA at Uobr 100 V; • tvoc arr - Reverse recovery time: 0.5 µs; • Sd - Total capacitance: 0.7 pF at Uobr 1 V. 0.5 DIP D104 100V 30mA — Pulse — 100 pieces. single
Diode MUR1640 (=U1640G)
Diode MUR1640 (=U1640G)
#10440
 22454 ON SEMICONDUCTOR 5 шт
13 грн.
100+11,70 грн.
200+10,40 грн.
500+9,10 грн.
2.5 DIP TO-220 400V 16A — Fast — 50pcs double common cathode
Diode BY500-200
Diode BY500-200
#16179
 28453 DIOTEC SEMICONDUCTOR 5 шт
10 грн.
100+9 грн.
200+8 грн.
500+7 грн.
0.6 DIP DO-201AD 200V 5A — Fast — 1000pcs single
Diode D245B
Diode D245B
#16620
 28858 СНГ 5 шт
28 грн.
50+25,20 грн.
200+22,40 грн.
500+19,60 грн.
Main technical characteristics of the D245B diode: • Uobp max - Maximum constant reverse voltage: 300 V; • Inp max - Maximum forward current: 5 A; • fd - Operating frequency of the diode: 1.1 kHz; • Unp - Constant forward voltage: no more than 1.5 V at Inp 5 A; • Iobp - Constant reverse current: no more than 3000 µA at Uobp 300 V. 13 Screw — 300V 5A — Rectifier — 20pcs single
Diode bridge RS207
Diode bridge RS207
#9019
 20569 SEP 4 шт
5 грн.
10+4,50 грн.
50+4 грн.
100+3,75 грн.
Diode bridge 1000V, 2A. 1.5 DIP — 1000V 2A — — — 500pcs —
Diode MD217
Diode MD217
#13707
 25870 СНГ 4 шт
5 грн.
50+4,50 грн.
200+4 грн.
500+3,50 грн.
Diodes MD217 silicon, diffusion. Are issued in the glass-to-metal case with flexible conclusions. The main technical characteristics of the diode MD217: • Uopp max - Maximum direct reverse voltage: 800 V; • Inp max - Maximum forward current: 100 mA; • fd - Operating frequency of the diode: 1 kHz; • Unp - DC forward voltage: no more than 1 V at Inp 100 mA; • Iobr - Constant reverse current: no more than 50 μA at Uobr 800 V. 1 DIP КД-9 800V 100mA — Rectifier — 100 pieces. single
Diode bridge KTS402A
Diode bridge KTS402A
#13710
 25874 СНГ 4 шт
30 грн.
Block of silicon, diffusion diodes. The main technical characteristics of the diode KTS402A: • Uobr and max - Maximum impulse reverse voltage: 600 V; • Inp max - Maximum forward current: 1000 mA; • fd - Operating frequency of the diode: 5 kHz; • Unp - DC forward voltage: no more than 4 V at Inp 1000 mA; • Iobr - Constant reverse current: no more than 125 µA at Uobr 600 V. 5.7 DIP — 600V 1A — Diode bridge — 100 pieces. —

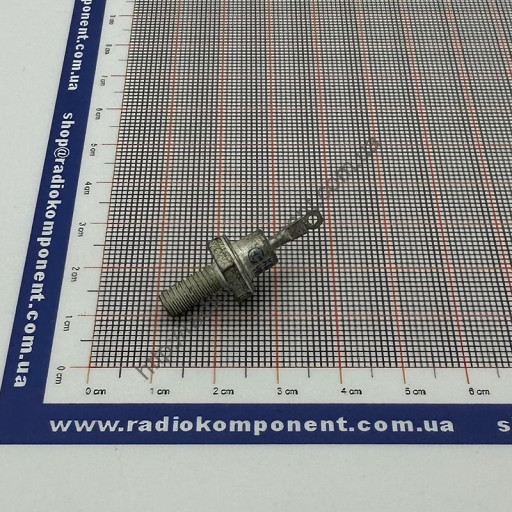

Diode KD204V
Diode KD204V
#17235
 29488 СНГ 4 шт
10 грн.
50+9 грн.
200+8 грн.
500+7 грн.
Main technical characteristics of the KD204V diode: • Uop and max - Maximum pulse reverse voltage: 50 V; • Inp max - Maximum forward current: 1000 mA; • fd - Diode operating frequency: 1 kHz; • Unp - Continuous forward voltage: no more than 1.4 V at Inp 600 mA; • Iop - Continuous reverse current: no more than 50 µA at Uop 50 V; • treverse - Reverse recovery time: 1.5 µs. 5 Screw КД-11 50V 1A — Rectifier — 50pcs single
Diode D101A Au
Diode D101A Au
#11889
 24142 СНГ 3 шт
10 грн.
50+9 грн.
200+8 грн.
500+7 грн.
Diodes silicon D101A, point, universal. Designed to work in TV video channels, in AGC systems and discriminators of FM and AM receivers. 0.4 DIP D104 75V 30mA — High frequency — 100 pieces. single
Diode bridge KTS405G
Diode bridge KTS405G
#14127
 26308 СНГ 3 шт
7 грн.
The main technical characteristics of the KTs405G diode: • Uopp max - Maximum direct reverse voltage: 300 V; • Inp max - Maximum forward current: 1000 mA; • fd - Operating frequency of the diode: 5 kHz; • Unp - DC forward voltage: no more than 4 V at Inp 1000 mA; • Iobr - Constant reverse current: no more than 125 μA at Uobr 300 V. 5.2 DIP — 300V 1A — Diode bridge — 500pcs —
Avalanche diode DL112-25-10
Avalanche diode DL112-25-10
#16201
 28447 СНГ 3 шт
80 грн.
50+72 грн.
200+64 грн.
500+56 грн.
6 Cooler — 1000V 25A — Avalanche — — —
Diode BY359X-1500
Diode BY359X-1500
#4318
 20985 PHILIPS 2 шт
24 грн.
100+21,60 грн.
200+19,20 грн.
500+16,80 грн.
Diode 10A, 1500V, 470ns 1.8 DIP TO-220F 1500V 10A — Damper — 50pcs single
Diode 8EWS12S
Diode 8EWS12S
#8986
 20555 VISHAY 2 шт
22 грн.
100+19,80 грн.
200+17,60 грн.
500+15,40 грн.
0.7 SMD DPAK;TO-252 1200V 8A — Rectifier — 1000pcs single
Diode D248B
Diode D248B
#13782
 25961 СНГ 2 шт
30 грн.
50+27 грн.
200+24 грн.
500+21 грн.
Diodes D248B silicon, diffusion. Designed to convert alternating voltage with a frequency of up to 1.1 kHz. The main technical characteristics of the diode D248B: • Uopp max - Maximum direct reverse voltage: 600 V; • Inp max - Maximum forward current: 5 A; • fd - Operating frequency of the diode: 1.1 kHz; • Unp - DC forward voltage: no more than 1.5 V at Inp 5 A; • Iobr - Constant reverse current: no more than 3000 μA at Uobr 600 V. 12 Screw — 600V 5A — Rectifier — 25pcs single
Diode KD206A
Diode KD206A
#14251
 26450 СНГ 2 шт
25 грн.
50+22,50 грн.
200+20 грн.
500+17,50 грн.
Diode KD206A silicon, mesa-diffusion, avalanche, rectifier. Designed to convert alternating voltage with a frequency of up to 20 kHz. The main technical characteristics of the KD206A diode: • Uopp max - Maximum direct reverse voltage: 400 V; • Inp max - Maximum forward current: 10 A; • fd - Operating frequency of the diode: 1 kHz; • Unp - DC forward voltage: no more than 1.2 V at Inp 1000 mA; • Iobr - DC reverse current: no more than 700 µA at Uobr 400 V; • tvoc - Reverse recovery time: 10 µs. 5.7 Screw КД-11 400V 10A — Rectifier — 100 pieces. single
