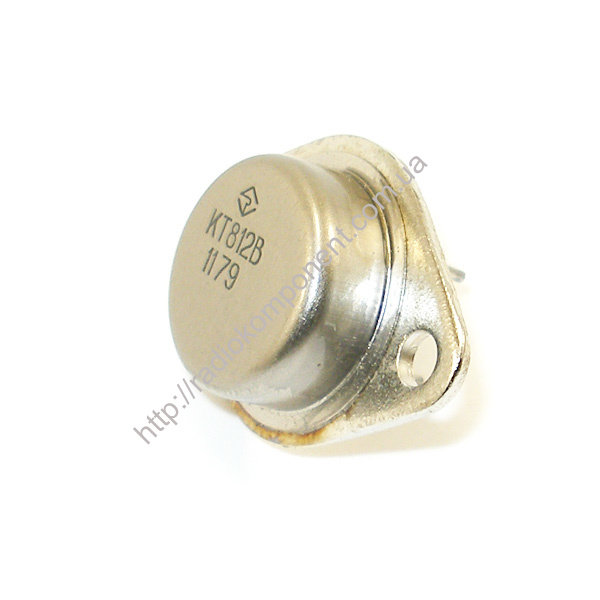

Transistor KT812V

  • Transistor KT812V
Vendor code: 24643
in stock (3 pc.)
50 грн.
Доступные скидки
Название Скидка Скидка, % Цена
10+ 2.50 грн. 5 47.50 грн.
50+ 5 грн. 10 45 грн.
100+ 10 грн. 20 40 грн.

The main technical characteristics of the transistor KT812V:
• Transistor structure: npn;
• Рк t max - Constant power dissipation of the collector with a heat sink: 50 W;
• fgr - Limiting frequency of the current transfer coefficient of the transistor for a circuit with a common emitter: not less than 3 MHz;
• Uкer max - Maximum collector-emitter voltage at a given collector current and a given resistance in the base-emitter circuit: 200 V (0.1 kOhm);
• Uebo max - Maximum emitter-base voltage at a given emitter reverse current and collector open circuit: 7 V;
• Ik max - Maximum allowable DC collector current: 8 A;
• Ik and max - The maximum allowable collector pulse current: 12 A;
• Iкer - Collector-emitter reverse current at given collector-emitter reverse voltage and resistance in the base-emitter circuit: 5 mA (700V);
• h21e - Static current transfer coefficient of the transistor for circuits with a common emitter: more than 10;
• Rke us - Saturation resistance between collector and emitter: no more than 0.3 Ohm.

Brand nameСНГ
StructureNPN
Transistor typeБиполярный
Power50Вт
Transistor case typekt-9
Mounting typeDIP
Weight g.16
Factory packaging20шт.
Collector-emitter voltage200В
Collector current
Current gain10
Frequency3МГц
