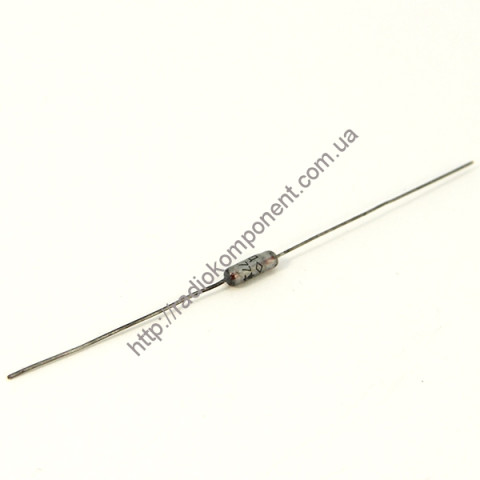

Diode D2D reduced

Diodes D2D germanium, point.
Designed to convert and detect signals with a frequency of up to 150 MHz in amplitude and phase detectors, as video detectors and DC component restorers in televisions, in ring modulators and frequency converters, in counting circuits and in low-power rectifiers.
The main technical characteristics of the diode D2D:
• Uopp max - Maximum direct reverse voltage: 50 V;
• Inp max - Maximum forward current: 16 mA;
• fd - Operating frequency of the diode: 100 kHz;
• Unp - DC forward voltage: no more than 1 V at Inp 4.5 mA;
• Iobr - Constant reverse current: no more than 250 μA at Uobr 50 V;
• tvoc arr - Reverse recovery time: 3 µs;
• Sd - Total capacitance: 0.2 pF at Uobr 1.5 V.
