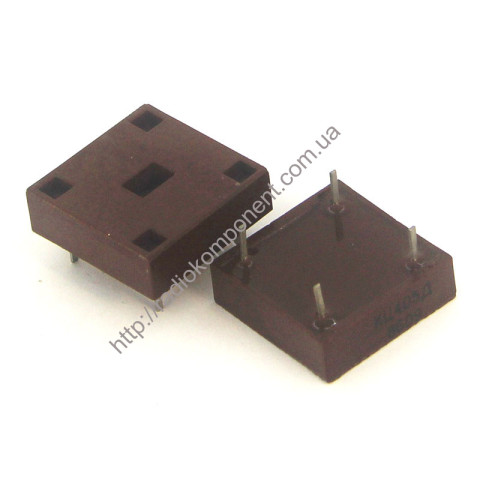

Diode bridge KTS405V
The main technical characteristics of the KTs405V diode:
• Uopp max - Maximum direct reverse voltage: 400 V;
• Inp max - Maximum forward current: 1000 mA;
• fd - Operating frequency of the diode: 5 kHz;
• Unp - DC forward voltage: no more than 4 V at Inp 1000 mA;
• Iobr - Constant reverse current: no more than 125 μA at Uobr 400 V.
| Diode type | Diode bridge |
| Urev. max, V | 400V |
| Ipr. max. | 1A |
| Brand name | СНГ |
| Mounting type | DIP |
| Weight g. | 5.2 |
| Factory packaging | 500pcs |
