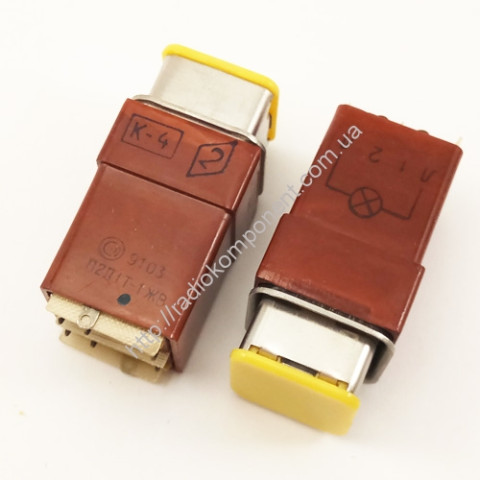

Switch P2P1T-1ZhV

P2P1T-1ZhV pushbutton switches are designed for switching DC and AC electrical circuits in electronic equipment. Without fixation. Two switching groups of contacts.

Climatic modification B.

The light element used in the switches is a miniature incandescent lamp type CM-28-0.05-1 ITLYu.675100.001 TU (supply voltage 28 V - not included in the product).

Switches are made with buttons of five colors:

- white (the presence of the letter "b" in the designation);

- yellow (the presence of the letter "g" in the designation);

- green (the presence of the letter "z" in the designation);

- blue (the presence of the letter "c" in the designation);

- red (the presence of the letter "k" in the designation).

Specifications:

- AG0.360.410 TU - products with acceptance "OTK"

- OYu0.360.034 TU - products with acceptance "VP"

Symbol when ordering

Switch P2P1T-1ZhV AG0.360.410 TU, where

- P2P1T-1 - designation of the type rating of the push-button switch, and the first digit indicates the number of microswitches in the switch, the second - the number of signal lamps);

- the letter b - after the hyphen - a variant of the color of the button (light field) of the switch (b, g, h, s or k; see above);

- letter B – climatic version B;

- AG0.360.410 TU - number of technical specifications (AG0.360.410TU - products with acceptance "SKK", OYu0.360.034TU - products of quality category "VP")
