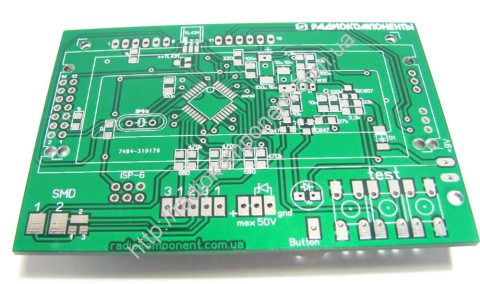

Board for Transistor Tester LCR Meter + ESR on Atmega328 or Atmega168 with additional functions (Czech Clone)

For questions about assembling and copying the firmware, contact the technical support of the project:
phone - 0673117978, skype - tyomanik, email - [email protected]
A service for the development of non-standard radio-electronic devices is possible,
as well as the development and manufacture of single copies of printed circuit boards (loot).

Download the project in one file:

Download the list of components for assembly

Download archive with firmware

Factory fee. Excellent quality.

Display of results on a 2x16 or 4x20 character LCD. If a microcontroller with at least 32k flash memory is used, then a 128x64 pixel graphic display can also be used with an ST7565 or SSD1306 controller.

Different modification of the device for different details.

There is marking of denominations of details. (for whale sets).

The tester measures (depending on the firmware):

Transistors, Triacs, Diodes, Resistors, Capacitors, ESR, Inductors, Zener diodes, Voltage up to 50v.

There is a self-calibration.

There is one, not very significant, error on the board - the LED is drawn on the board the other way around.When assembling, pay attention to this point.
