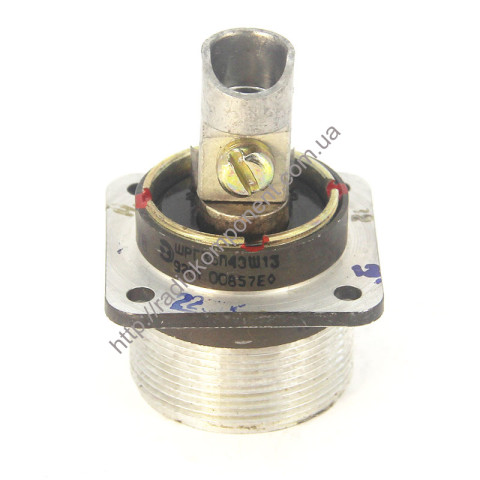

Connector ShRG36P4ESh13 fork

SHRG36P4ESH13 fork
The ShRG36P4ESh13 cylindrical low-frequency hermetic connector is designed for operation in electric circuits of direct and alternating currents with a frequency of up to 3 MHz at a voltage of up to 850 V.
The connectors consist of a block (device) plug.
The block connector plug is made without a spigot or with a straight spigot.
The joint of the connectors is threaded, the polarization of the bodies is single-key.
The contact plating is silver.
Mounting method - soldering.
Connectors are designed for installation with shielded or unshielded cables (wires) according to the type of end nut of the branch pipe.
The connectors are designed for indoor and outdoor installation in UHL climatic design in accordance with the specifications GE0.364.108 TU and bR0.364.040 TU.

Symbol structure:
SHRG36P4ESH13
ShRG - connector type;
36 - conditional size of the case;
P - design of the instrument part: P - without branch pipe; PC - with a straight pipe;
4 - number of contacts;
E - type of branch pipe nut: E - for a shielded cable; H - for unshielded cable;
W - type of contacts: W - plug;
13 - designation of a combination of contacts (conditional number).
