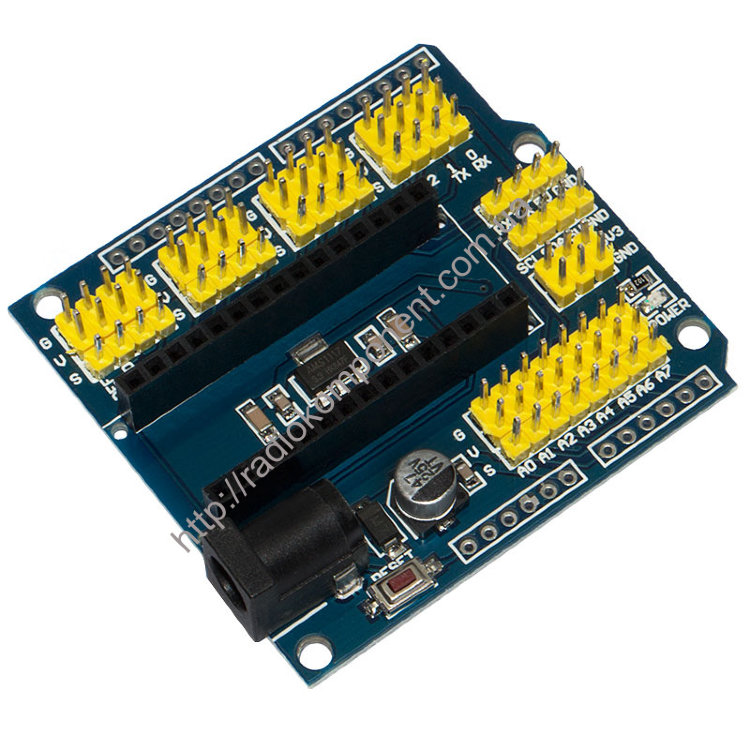

Funduino NANO 006 V3.0 multifunction expansion module
The Funduino NANO 006 V3.0 expansion module is designed to conveniently connect peripherals to the Arduino NANO board. The expansion module facilitates the connection of various actuators and sensors. The expansion board is used in projects that require a large number of inputs and outputs to connect sensors or devices.
The expansion board has convenient outputs for connecting sensors using digital and analog contacts or UART and I2C ports.
In the center of the expansion board is a bar for connecting Arduino NANO and Arduino Pro Mini devices. When installing the Arduino Pro Mini, you need to pay attention to ensure that the GND pins of the device board match the analogous pins of the expansion module. On the sides of the expansion board there are places for mounting additional pads by soldering.
Each output of the expansion board has its own contacts for power supply and the common wire of the sensor. The board also has a 3.3 V voltage regulator and 3 connectors for powering devices with this voltage. To connect the I2C (SCL, SDA, 5V, GND) and UART (RX, TX, 5V, GND) buses, the pins are brought out separately.
The expansion board has the following pins:
3V3: 3.3V power supply
5V: output for power supply of sensors
GND: ground
AREF: ADC reference voltage
D0-D13: digital inputs/outputs
A0 - A7: analogue inputs
Power is supplied from the connected microcontroller device or an external power supply. An external power supply is connected to the expansion board using the DC-005 connector. The voltage range of the external power supply is 7 - 12 V. The presence of power is signaled by the POWER LED, which is connected to the power buses.
Additional pads are not included in the kit of the module.
Module Specifications:
Supply voltage, V 7 ... 12
Stabilizer AMS1117
Number of digital inputs/outputs 14
Analog contacts 8
PWM pins 6
Module dimensions, mm 57 x 10 x 54
Device type | Arduino expansion modules |
Brand name | CHINA |
Weight g. | 19 |
