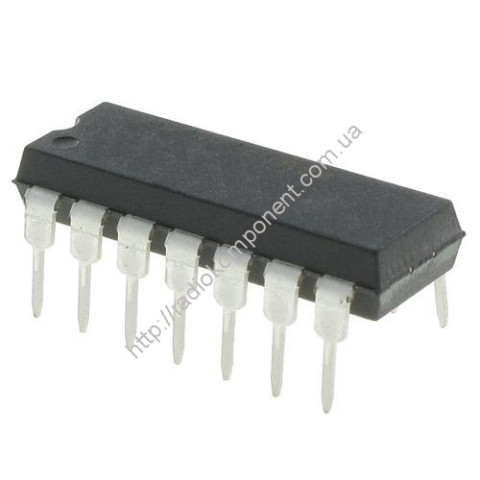

Chip K131LA3
Название | Скидка | Скидка, % | Цена |
---|---|---|---|
10+ | 0.25 грн. | 5 | 4.75 грн. |
50+ | 0.50 грн. | 10 | 4.50 грн. |
100+ | 1 грн. | 20 | 4 грн. |
Chip K131LA3 is 4 logic elements 2I-NOT.
Contains 56 integral elements.
Housing type 201.14-1.
Weight no more than 1 g.
General recommendations for use:
Soldering temperature (235 ± 5) С, distance from the body to the soldering point (1 ± 0.5) mm, soldering time (2 ± 0.5) s.
The number of allowable soldering during installation operations 1.
On microcircuits, instead of the index "K", there may be a dot.
Permissible value of static potential 30 V.
It is not recommended to connect any electrical signals (including the "power" and "ground" buses) to the microcircuit pins.
When repairing equipment, the microcircuit should be changed only with the power sources disconnected. Free inputs must be connected to a DC voltage source of 5 V ±10% through a 1 kΩ resistor or to a DC voltage source of 4.5 V ±10%. In this case, it is allowed to connect up to 20 pins of microcircuits to one resistor.
Brand name | СНГ |
Appointment | Logics |
Type of shell | DIP14 |
Mounting type | DIP |
Weight g. | 1 |
Factory packaging | 100 pieces. |
