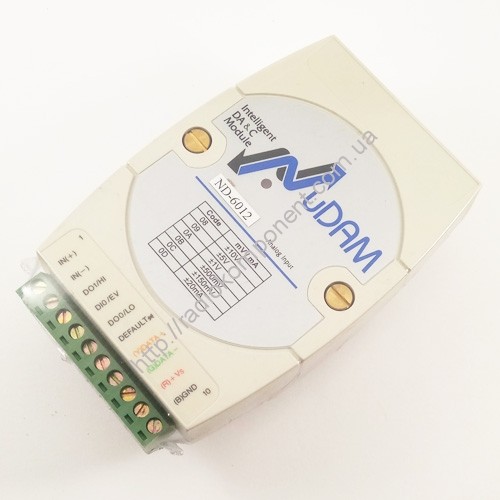

ND-6012, 1-канальный модуль аналогового ввода

1-channel analog input module (mV, V, mA)

• 1 channel, input ranges: ±150, ±500 mV, ±1, ±5, ±10 V; ±20 mA.
• Sample rate: 10 S/s.
• Accuracy ±0.05% or better.
• 1 digital input, pull-up current 0.5 mA.
• 2 digital outputs, open-collector 30 V/30 mA max. load.
• Event counter: Input frequency max. 50 Hz, pulse width min. 0.5 m.
• Power consumption 1.1 W typ. (10...30 V DC).
• Connectors: Screw terminals (pluggable).
• Version D with 5 ¹/₂-digit LED display.
